Type 209 class SS

Type 209 class SSK

AR

BR
CH CO EC GR ID IN SK PE TU1 TU2 VE

Displacement surfaced (tons) 1,248 1,260 1,260 1,180 1,285 1,100 1,660 1,285 1,100 1,185 980 1,454 1,285

Displacement dived 1,440 1,440 1,390 1,285 1,390 1,285 1,850 1,390 1,285 1,290 1,185 1,585 1,600

Speed/surfaced (kt) 11 11 11 11 11 11 11 11 11 11 11 11 11

Speed/dived (kt) 21.5 21.5 21.5 21.5 21.5 21.5 21.5 21.5 21.5 21.5 21.5 21.5 21.5

Length (m) 55.9 61.0 59.5 55.9 59.5 55.9 64.4 55.5 56.0 56.0 61.2 62.0 61.0

Beam (m) 6.3 6.2 6.2 6.3 6.3 6.2 6.5 6.2 6.2 6.2 6.2 6.2 6.2

Torpedotupes 8 533 mm bow 8 533 mm bow 8 533 mm bow 8 533 mm bow 8 533 mm bow 8 533 mm bow 8 533 mm bow 8 533 mm bow 8 533 mm bow 8 533 mm bow 8 533 mm bow 8 533 mm bow 8 533 mm bow

Torpedoes AES SUT SST 4 Mod 1 (14)
Marconi Mk 24 Tigerfish Mod 1/2
AES SUT SST 4 Mod 1 (14) AES SUT SST 4 Mod 1 AES SUT SST 4 Mod 1
AES SUT SST 4 Mod 0
AES SUT SST 4 Mod 1 AES SUT SST 4 Mod 0 STN SUT mod 2 Whitehead A184 AES SUT SST 4 Mod 1 Marconi Mk 24 Tigerfish Mod 1/2 AES SUT SST 4 Mod 1

Missiles Harpoon Harpoon

Radar/surface search
Thomson-CSF Calypso II/III
Thomson-CSF Calypso II/III Thomson-CSF Calypso II/III Thomson-CSF Calypso II/III Thomson-CSF Calypso II/III

Machinery 4 MTU type 12V-493-TY60 diesels 4 MTU 12V-493-TY60 diesels - -
4 MTU 12V493 TV60 diesel-motorer

Horsepower 3,600 5,000 - - - - - -

Range -

Endurance -

Man 5+26 5+26 8+28

Fuel 50 -

Argentina: 2 (Type 209/1200)

Nr./navn Værft Køllagt Søsat Tjeneste Noter

S 31 Salta Howaldtswerke, Kiel 3-4-70 9-11-72 7-3-73 Mar del Plata

S 32 San Luis Howaldtswerke, Kiel 1-10-70 3-4-73 24-5-74 stricken

Brazil: 4 Type 209/3 (Type 1400 Mod. 3) SSK

Nr./navn Værft Køllagt Søsat Tjeneste Noter

S 30 Tupi HDW, Kiel 8-3-85 28-4-87 6-5-89 -

S 31 Tamoio Arsenal do Marinha 15-7-86 18-11-93 12-12-94 -

S 32 Timbira Arsenal do Marinha 15-9-87 5-1-96 16-12-96 -

S 33 Tapajós Arsenal do Marinha 6-3-96 5-6-98 -4-00 - 11-6-98

IDR 8/85: Tupi: Type 209/1400 diesel-electric submarine on order with Howaldtswerke-Deutsche Werft for the Brazilian Navy, laid down 12.1.85.

IDR 12/85: Type 209, den første af to 1.400 tons ubåde til den brasilianske flåde (den første bliver bygget af HDW i Kiel, den anden skal bygges i Brasilien), køllagt 8/3/85.

IDR 8/86: Tamoio: Second of four Type 209 submarines for the Brazilian Navy. Being built by Rio de Janeiro Dockyard under licence from HDW which built the first of class. laid down 15.7.86

Chile: 2 Type 209/3 (Type 1300 eller 1400)

Nr./navn Værft Køllagt Søsat Tjeneste Noter

S 20 Thompson Howaldtswerke, Kiel -11-80 - -9-84 -

S 21 Simpson Howaldtswerke, Kiel -2-82 - -1-85 -

Colombia: 2 (Type 209/1200)

Nr./navn Værft Køllagt Søsat Tjeneste Noter

SS 28 Pijao Howaldtswerke, Kiel - 10-4-74 17-4-75 -

SS 29 Tayrona Howaldtswerke, Kiel 16-7-74 18-7-75 -

Ecuador: 2 (Type 209/1300)

Nr./navn Værft Køllagt Søsat Tjeneste Noter

S 101 Shyri Howaldtswerke, Kiel -8-74 8-10-76 16-3-78 Guayaquil (ex S 11)

S 102 Huancavilca Howaldtswerke, Kiel -1-75 18-3-77 1-6-78 Guayaquil (ex S 12)

Egypt: 0+4 (Type 209/1400)

Nr./navn Værft Køllagt Søsat Tjeneste Noter

- - - - - -

- - - - - -

- - - - - -

- - - - - -

Grækenland: 4 Type 1100 + 4 Type 1200

Name Builder Køllagt Søsat Tjeneste Noter

S 110 Glavkos Howaldtswerke 1-9-69 7-6-71 10-2-72 Type 1100

S 111 Nereus Howaldtswerke 15-1-69 7-6-71 10-2-72 Type 1100

S 112 Triton Howaldtswerke 1-6-69 14-10-71 8-8-72 Type 1100

S 113 Proteus Howaldtswerke 1-10-69 1-2-72 8-8-72 Type 1100

S 116 Posydon (Poseidon) Howaldtswerke 15-1-76 21-3-78 22-3-79 Type 1200

S 117 Amphirite - 26-4-76 14-6-78 14-9-79 Type 1200

S 118 Okeanos - 1-10-76 16-11-79 15-11-79 Type 1200

S 119 Pontos - 25-1-77 21-3-79 29.4.80 Type 1200

Navn Køllagt Søsat Tjeneste Bemærk

S 110 Glavkos
1-9-68

15-9-70

6-9-71
-

S 111 Nereus 15-1-69 7-6-71 10-2-72 -

S 112 Triton 1-6-69 14-10-71 8-8-72 -

S 117 Amfrititi

India: Type 209/4 (Type 1500): 4 (6?)

S 44 Shishumar Howaldtswerke, Kiel -5-82 22-9-86

S 45 Shankush Howaldtswerke, Kiel -9-82 20-11-86

S 46 Shalki Mazagon Dockyard, Bombay -6-84 7-2-92

S 47 Shankul 28-5-94

afbestilt

- - - - - afbestilt

IDR 12/85: Type 1500: First of two 1,500t submarines being built by HDW (Kiel) for the Indian Navy (it is planned to build a further two in India), on trials - 9.85.

Indonesien: 2 (Type 209/1300) + 3 Improved U209 bygges af Sydkorea

Name Builder Køllagt Søsat Tjeneste Noter

401 Cakra Howaldtswerke, Kiel 25-11-77 10-9-80 18-3-81 -

402 Candrasa (Nanggala) Howaldtswerke, Kiel 14-3-78 10-9-80 -8-81 -

Peru: Type 209/1200 class: 6

Name Builder Køllagt Søsat Tjeneste Noter

S 45 Islay Howaldtswerke, Kiel - 11-10-73 23-1-75 -

S 46 Arica Howaldtswerke, Kiel - 5-4-74 4-4-75 -

S 31 Casma Howaldtswerke, Kiel - 31-8-79 19-12-80 -

S 32 Antofagasta Howaldtswerke, Kiel - - 14-3-80 -

S 33 Blume - - - -

S 34 Pisagua - - - -

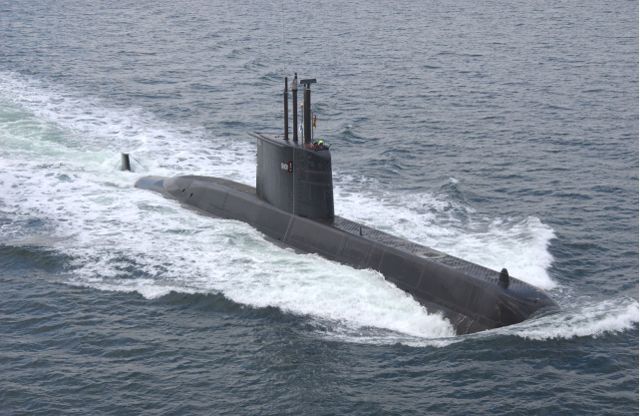

Sydafrika: Type 209/1400MOD: 2 + 1

S 101 Manthatisi Howaldtswerke, Kiel 22-5-01 15-6-04 3-11-05 -

S 102 Charlotte Maxeke Thyssen Nordseewerke 12-11-03 4-5-05 14-3-07 -

S 103 Queen Modjadji Thyssen Nordseewerke -11-04 -06 -08 -

South Korea: Type 209/1200 class SS: 9 (Germany)

061 Chang Bogo - -89 18-6-92 2-6-93 -

062 Yi Chon - -90 14-10-92 30-4-94 -

063 Choi Muson - -91 25-8-93 27-2-95 -

065 Pakui - -92 20-5-94 3-2-96 -

066 Lee Jongmu - -93 17-4-94 29-8-96 -

067 Chong Un/Jeongun - -94 7-5-98 -3-98 29-8-97

068 Lee Sunsin - -95 21-5-98 15-6-99 -

069 Nadaeyong - -96 15-6-99 -5-00 -

071 Lee Eokgi - -97 -3-00 -3-01 -

Turkey: 6/4/4

Navn Værft Køllagt Søsat Tjeneste Noter

S 347 Atilay Howaltswerke 1-12-72 23-10-74 12-3-76 Type 1200

S 348 Saldiray - 2-1-73 14-2-75 15-1-77 -

S 349 Batiray - 1-6-75 24-10-77 7-11-78 -

S 350 Yildiray Golcyk NY 1-5-76 20-7-79 20-7-81 -

S 351 Doganay - 21-3-80 16-11-83 16-11-84 -

S 352 Dolunay - 9-3-81 22-7-88 29-6-90 -

S 353 Preveze Golcuk NY 12-9-89 22-10-93 28-7-94 Type 1400

S 354 Sakarya Golcuk NY 1-2-90 28-7-94 21-12-95 Type 1400

S 355 18 Mart - 28-7-94 25-8-97 28-6-98 -

S 356 Anafartalar - 1-8-95 1-9-98 22-7-99 -

S 357 Gür - 24-7-98 -5-02 -2-04 -

S 358 Çanakkale - 22-7-99 -8-02 -6-04 -

S 359 Burakreis - - 5-9-05 15-2-06 -

S 360 Birinci Inönü - - -5-06 22-7-07 -

Venezuela: 2 Type 209/2 (Type 1300)

Name Builder Køllagt Søsat Tjeneste Noter

S 31 Sabalo Howaldtswerke, Kiel 2-5-73 1-17-75 6-8-76 -

S 32 Caribe Howaldtswerke, Kiel 1-8-73 6-11-75 11-3-77 -

	AR	BR	CH	CO	EC	GR	ID	IN	SK	PE	TU1	TU2	VE
Displacement surfaced (tons)	1,248	1,260	1,260	1,180	1,285	1,100	1,660	1,285	1,100	1,185	980	1,454	1,285
Displacement dived	1,440	1,440	1,390	1,285	1,390	1,285	1,850	1,390	1,285	1,290	1,185	1,585	1,600
Speed/surfaced (kt)	11	11	11	11	11	11	11	11	11	11	11	11	11
Speed/dived (kt)	21.5	21.5	21.5	21.5	21.5	21.5	21.5	21.5	21.5	21.5	21.5	21.5	21.5
Length (m)	55.9	61.0	59.5	55.9	59.5	55.9	64.4	55.5	56.0	56.0	61.2	62.0	61.0
Beam (m)	6.3	6.2	6.2	6.3	6.3	6.2	6.5	6.2	6.2	6.2	6.2	6.2	6.2
Torpedotupes	8 533 mm bow	8 533 mm bow	8 533 mm bow	8 533 mm bow	8 533 mm bow	8 533 mm bow	8 533 mm bow	8 533 mm bow	8 533 mm bow	8 533 mm bow	8 533 mm bow	8 533 mm bow	8 533 mm bow
Torpedoes	AES SUT SST 4 Mod 1 (14)	Marconi Mk 24 Tigerfish Mod 1/2	AES SUT SST 4 Mod 1 (14)	AES SUT SST 4 Mod 1	AES SUT SST 4 Mod 1	AES SUT SST 4 Mod 0	AES SUT SST 4 Mod 1	AES SUT SST 4 Mod 0	STN SUT mod 2	Whitehead A184	AES SUT SST 4 Mod 1	Marconi Mk 24 Tigerfish Mod 1/2	AES SUT SST 4 Mod 1
Missiles						Harpoon						Harpoon
Radar/surface search	Thomson-CSF Calypso II/III	Thomson-CSF Calypso II/III	Thomson-CSF Calypso II/III	Thomson-CSF Calypso II/III	Thomson-CSF Calypso II/III
Machinery	4 MTU type 12V-493-TY60 diesels		4 MTU 12V-493-TY60 diesels	-	-		4 MTU 12V493 TV60 diesel-motorer
Horsepower	3,600		5,000	-	-	-	-	-	-
Range										-
Endurance										-
Man	5+26		5+26				8+28
Fuel	50									-

Nr./navn	Værft	Køllagt	Søsat	Tjeneste	Noter
S 31 Salta	Howaldtswerke, Kiel	3-4-70	9-11-72	7-3-73	Mar del Plata
S 32 San Luis	Howaldtswerke, Kiel	1-10-70	3-4-73	24-5-74	stricken

Name	Builder	Køllagt	Søsat	Tjeneste	Noter
S 110 Glavkos	Howaldtswerke	1-9-69	7-6-71	10-2-72	Type 1100
S 111 Nereus	Howaldtswerke	15-1-69	7-6-71	10-2-72	Type 1100
S 112 Triton	Howaldtswerke	1-6-69	14-10-71	8-8-72	Type 1100
S 113 Proteus	Howaldtswerke	1-10-69	1-2-72	8-8-72	Type 1100
S 116 Posydon (Poseidon)	Howaldtswerke	15-1-76	21-3-78	22-3-79	Type 1200
S 117 Amphirite	-	26-4-76	14-6-78	14-9-79	Type 1200
S 118 Okeanos	-	1-10-76	16-11-79	15-11-79	Type 1200
S 119 Pontos	-	25-1-77	21-3-79	29.4.80	Type 1200

Navn	Køllagt	Søsat	Tjeneste	Bemærk
S 110 Glavkos	1-9-68	15-9-70	6-9-71	-
S 111 Nereus	15-1-69	7-6-71	10-2-72	-
S 112 Triton	1-6-69	14-10-71	8-8-72	-


S 44 Shishumar	Howaldtswerke, Kiel	-5-82		22-9-86
S 45 Shankush	Howaldtswerke, Kiel	-9-82		20-11-86
S 46 Shalki	Mazagon Dockyard, Bombay	-6-84		7-2-92
S 47 Shankul				28-5-94
					afbestilt
-	-	-	-	-	afbestilt

Name	Builder	Køllagt	Søsat	Tjeneste	Noter
401 Cakra	Howaldtswerke, Kiel	25-11-77	10-9-80	18-3-81	-
402 Candrasa (Nanggala)	Howaldtswerke, Kiel	14-3-78	10-9-80	-8-81	-


S 101 Manthatisi	Howaldtswerke, Kiel	22-5-01	15-6-04	3-11-05	-
S 102 Charlotte Maxeke	Thyssen Nordseewerke	12-11-03	4-5-05	14-3-07	-
S 103 Queen Modjadji	Thyssen Nordseewerke	-11-04	-06	-08	-


061 Chang Bogo	-	-89	18-6-92	2-6-93	-
062 Yi Chon	-	-90	14-10-92	30-4-94	-
063 Choi Muson	-	-91	25-8-93	27-2-95	-
065 Pakui	-	-92	20-5-94	3-2-96	-
066 Lee Jongmu	-	-93	17-4-94	29-8-96	-
067 Chong Un/Jeongun	-	-94	7-5-98	-3-98	29-8-97
068 Lee Sunsin	-	-95	21-5-98	15-6-99	-
069 Nadaeyong	-	-96	15-6-99	-5-00	-
071 Lee Eokgi	-	-97	-3-00	-3-01	-

Navn	Værft	Køllagt	Søsat	Tjeneste	Noter
S 347 Atilay	Howaltswerke	1-12-72	23-10-74	12-3-76	Type 1200
S 348 Saldiray	-	2-1-73	14-2-75	15-1-77	-
S 349 Batiray	-	1-6-75	24-10-77	7-11-78	-
S 350 Yildiray	Golcyk NY	1-5-76	20-7-79	20-7-81	-
S 351 Doganay	-	21-3-80	16-11-83	16-11-84	-
S 352 Dolunay	-	9-3-81	22-7-88	29-6-90	-
S 353 Preveze	Golcuk NY	12-9-89	22-10-93	28-7-94	Type 1400
S 354 Sakarya	Golcuk NY	1-2-90	28-7-94	21-12-95	Type 1400
S 355 18 Mart	-	28-7-94	25-8-97	28-6-98	-
S 356 Anafartalar	-	1-8-95	1-9-98	22-7-99	-
S 357 Gür	-	24-7-98	-5-02	-2-04	-
S 358 Çanakkale	-	22-7-99	-8-02	-6-04	-
S 359 Burakreis	-	-	5-9-05	15-2-06	-
S 360 Birinci Inönü	-	-	-5-06	22-7-07	-
